Description
![](https://manitou.cdn.prismic.io/manitou%2F5be8f21d-0a4b-4778-8c40-55431c12e545_ab30_mrt1840_ro_st_fo_a_0617_779423.jpg)
![](https://manitou.cdn.prismic.io/manitou%2F6fcd226b-a567-4fe8-8f52-13369d0f42eb_ab31_mrt1840_fr_pn_fo_a_0617_779424.jpg)
Lifting height | 17.9 m | 58’11” |
Lifting capacity | 4000 kg | 8800 lb |
Max reach | 15.1 m | 49’7″ |
Drawbar pull | 8600 dan | 19333 lbf |
Overhang | 2.04 m | 6’8″ |
Moving speed | 32 kmh | 19.8 mph |
Length (up to the back of the fork) | 5.54 m | 18’2″ |
Total length (fork included) | 6.74 m | 22’1″ |
Wheelbase length | 2.32 m | 7’7″ |
Width | 2.4 m | 7’10” |

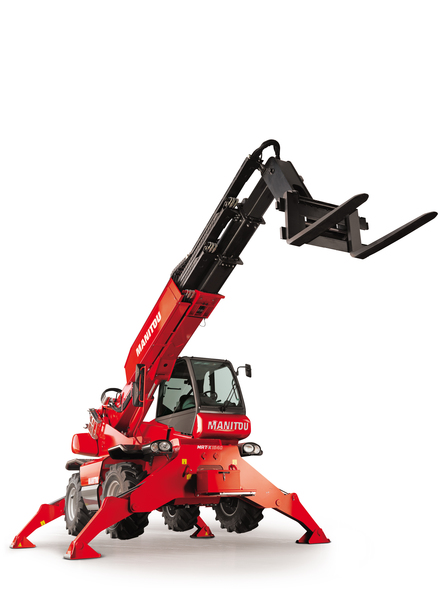

Overall width (stabilizers lowered) | 3.98 m | 13’0″ |
Height | 2.97 m | 9’9″ |
Weight (unladen) | 13670 kg | 30137 lb |
Turning radius | 3.9 m | 12’1″ |
Ground clearance | 0.34 m | 1’1″ |
![](https://manitou.cdn.prismic.io/manitou%2F53609631-72dd-4c8f-869c-ca9a53462236_schema-mrt-01.jpg)
![](https://manitou.cdn.prismic.io/manitou%2F9e5da4e8-2861-4bb5-9083-0d6f5883ae7a_schema-mrt-03.jpg)
![](https://manitou.cdn.prismic.io/manitou%2F6ce79abf-6554-4e63-844b-6857b8257aa6_schema-mrt-02.jpg)
Energy | Diesel | |
Engine brand | Perkins | |
Engine type | Stage 3A | |
Engine manufacturer type | 1104D-44T | |
Power | 101 ch | 101 hp |
Power | 74.5 KW | |
Max. Torque @ Rotation | 392 Nm @ tr/min | |
Number of cylinders | 4 | |
Total capacity | 4400 cm3 | 268.5 in3 |
Injection | Direct | |
Cooling | Water | |
Voltage | 12 V | |
Amperage | 120 Ah | |
Transmission type | Hydrostatic |
Pressure | 270 bars | |
Hydraulic oil tank volume | 150 l | 39.6 gal |
Standard tyres | Pneumatic | |
Number of wheels (front/rear) | 2/2 | |
Number of drive wheels (front/rear) | 2/2 | |
Number of steering wheels (front/rear) | 2/2 | |
Number of braking wheels (front/rear) | 2/0 | |
Tyre dimensions (front) | 400/70 – 20 14 PR | |
Tyre dimensions (rear) | 400/70 – 20 14 PR | |
Parking brake | Automatic negative handbrake | |
Driving position noise levels | 79.7 dB | |
Environmental noise levels | 104 dB | |
Vibrations affecting hands/arms | <2.5 m/s |
![]() |

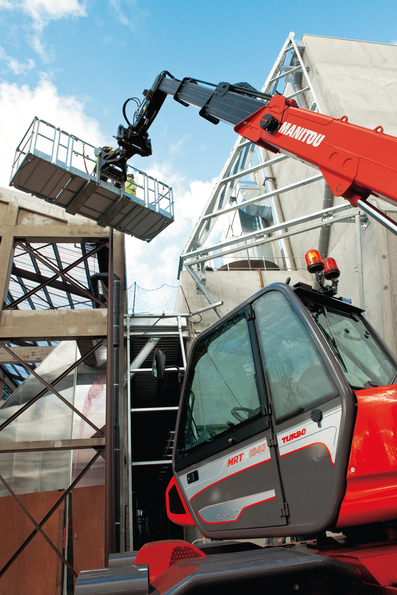

Expandable Platform
|
|
Aerial Jib 2
|
|
Frame Mounted Hook
|
|
Crane
|
|
Extension Jib with Winch
|
